Porous Air Exhaust Muffler Stainless Steel Industrial Sintered Bronze Filter Plate
Sintered Bronze Filter Plate
Sintered filters elements are widely used in chemical, petroleum, metallurgy, air craft, gas, electronic, pharmacy, pneumatic, air regulator components, pressure filter elements, air filters and more fields
Porous Sintered Metal Filters consist of highly uniform, interconnected networks of pores with tortuous paths that trap solid particles in gas or liquid flow streams. Excellent depth filters with superior mechanical strength. Stainless Steel Type 316L withstands temperatures up to 750°F (399°C) in oxidizing and 900°F (482°C) in reducing environments. These steam autoclavable filters can be cleaned by other methods, such as ultrasonic baths or reverse flow flushing. If your application requires even greater resistance to corrosion, temperature, wear, and vibration, other nickel-based alloys are available.
Sintered Bronze Filter Plate can be made into tube type and plate type. Because of the good permeability, filter fitness and high stock utilization, they are widely used in medical industry, chemical industry, metallurgical industry and field of gas purification.
Sintered Bronze Filter Plate Features
| Applications for sintered stainless steel powder filter element: | · Dust, bacteria and oil fog removal of gas and steam. · Noise reduction, gas buffer. · The recycle of catalysts. · Decarburization filtration. · Viscous liquid filtration. · Strong polar solvent filtration. · Retention of particles from off-gas of fluidized beds. · The filtration and separation of pharmaceutical, beverage, food, metallurgy, petroleum and other fields. |
| Features: | · High filtration efficiency. · High mechanical strength. · High permeability and porosity. · Anti-corrosion and anti-pressure. · Even distribution of pores catalysis recycling accurate filtering. · Can be used at high and low temperature. · Easy to clean and can be used for many times. · Long service life. |
| Specifications: | · Item: sintered stainless steel powder filter element. · Material: stainless steel powder. · Thickness of wall: 1.0 mm, 2.0 mm, 3.0 mm, 4.0 mm, 5.0 mm, etc. · Length: 10", 20", 30", 40". · Working Temperature: -200 °C to 1000 °C. |
Sintered Bronze Filter Plate Types
| | Filter rating 5-70um sintered powder porosity tube metal filter |
| | | | | |

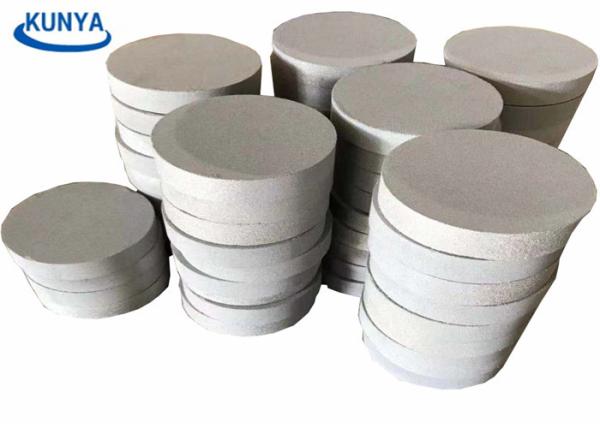

Sintered porous round discs | | | | |
| | | | | |
| | | | | |
Sintered porous cartridge | | | | |
Sintered Bronze Filter Plate Characteristics:
1. Shape stability, shock resistance and alternating load capacity superior to other metal materials;
2. Air permeability, stability of separation effect;
3. Excellent unloading strength, suitable for use in high temperature, high pressure and strong corrosive environment;
4. Especially suitable for high-temperature gas filtration;
5. Can be customized according to user requirements of various shapes and precision products, can also be welded to use a variety of interfaces.
AQ:
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery or against copy of shipping B/L. For long term business relations, we have more advantage terms for payment.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 25 to 35 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order. and if the item was non standard, we have to consider extra 10-15days for tooling/mould made.
