SS304 Wedge Wire Screen Basket

Product Categories
Anping County Kunya Wire Mesh Products Co., Ltd.
Contact Now

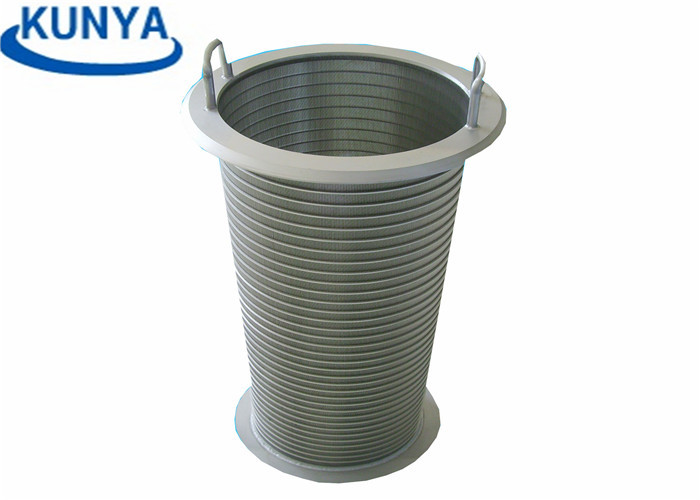

SS304 Wedge Wire Screen Basket

Brand Name : KUNYA

Model Number : KYF2123R

Place of Origin : CHINA

MOQ : 1 piece

Price : USD$1-USD$60 per piece

Payment Terms : T/T, Western Union

Supply Ability : 98500 pieces per month

Delivery Time : 15-25 days

Packaging Details : wooden case

Product name : Water Well Screen Pipe

Usage : Liquid Filter

Material : stainless steel wire

Diameter : 20 - 1000 mm

Application : Liquid Filtration

Slot : 0.05mm, 0.08mm, 0.10mm, 0.15mm, 0.2mm, 0.3mm, 0.6mm, etc.

Filter rating : 10-500um

Support rod : 2.3 - 6.3 mm

Length : Up to 6 Meters

Special Size : Accepted

Contact Now

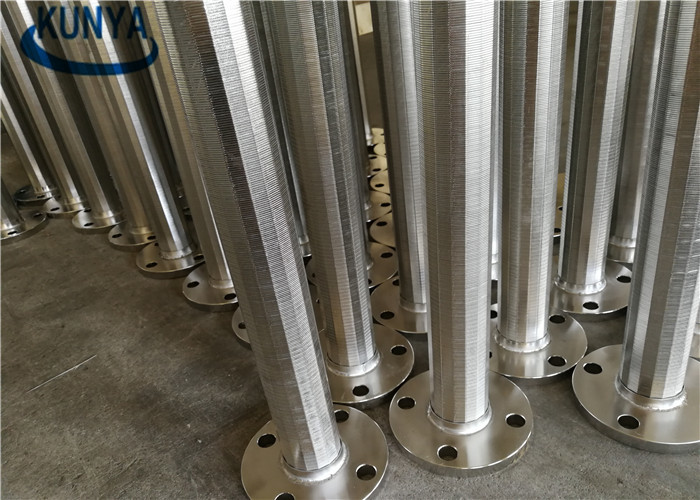

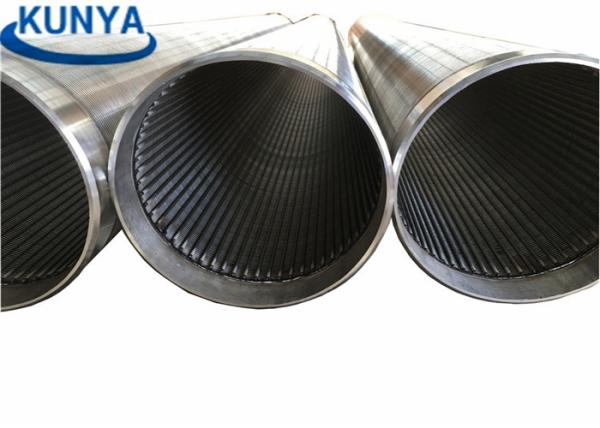

High Quality Johnson Screen Wedge Wire Screen Hot Sale Water Well Screen Pipe

Johnson Wedge Wire Screen Tube Strainer also named wedge wire screen is made of V-shape profile wire and longitudinal support rods. Each intersecting point of these wires is fusion welded which makes it has sturdy construction and good mechanical property. The profile wire and support rod can be axial wire or radial wire. It mainly includes internal filtration, external direction filtration. According to the different usage, we can design the flow direction and shape to meet the application requirements. What’s more, we can customized the wedge wire filter element such as filter tube, filter basket based on the clients requirements.
Water Well Screen Pipe Specifications

Material low carbon galvanized wire, mild steel wire, stainless steel wire (SS302, SS304, SS304L, SS316, SS316L, etc.)
Wedge wire

Width: 1.50mm, 1.80mm, 2.30mm, 3.00mm, 3.70mm, 3.30mm.
Height: 2.20mm, 2.50mm, 2.70mm, 3.60mm, 4.30mm 4.70mm, 5.60mm, 6.30mm, 7.00mm.
Support rod

Width: 2.30mm, 3.00mm, 3.30mm, 3.70mm.
Height: 2.70, 3.60, 4.70, 5.60, 6.30.
Slot opening 0.05mm, 0.08mm, 0.10mm, 0.15mm, 0.2mm, 0.3mm, 0.6mm, etc.
Diameter 20 - 1000mm.
Length up to 6 meters.
Filter type from outside to inside or inside to outside.
End Connection welded rings (plain beveled ends for butt welding) or threaded male and female coupling (spiral).

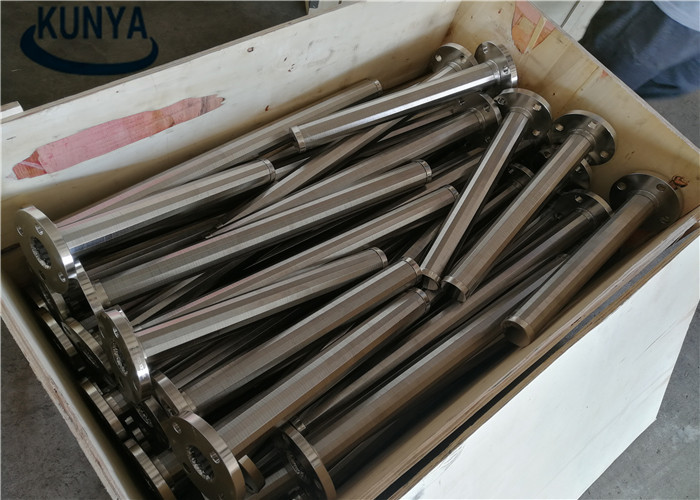

Packing in wooden cases, boxes lined with waterproof material.
Special Size Accepted



Water Well Screen Pipe Uses

Commodity Items Wedge wire screen/Johnson pipe tube wire screen/Wedge slot screen
Material SUS304 316 316L, Hastelloy, Monel wire,FeCrAl wire or required
Specifications Wedge wire, slot size, support bar, support pitch sizes, screen thickness all can be customized as per your request.
Deep processed

Wedge Wire Screen Panel
Wedge Wire Pipe&Cylinder
Wedge Wire Screen Basket
Wedge Sieve Bend Screen
Features

High corrosion resistant;
Long-use time;
Easy-cleaning.
Applications

Waste water-treatment &water well drilling,
oil well drilling, mineral processing,
refining & petrochemical and other areas

SS304 Wedge Wire Screen BasketSS304 Wedge Wire Screen BasketSS304 Wedge Wire Screen Basket
SS304 Wedge Wire Screen BasketSS304 Wedge Wire Screen BasketSS304 Wedge Wire Screen Basket
SS304 Wedge Wire Screen BasketSS304 Wedge Wire Screen BasketSS304 Wedge Wire Screen Basket
