1 8000 Mesh 304 316 316L Fine Mesh Screen Stainless Steel Wire Cloth 1.2m

Brand Name : KUNYA

Model Number : KYF-122805

Place of Origin : CHINA

MOQ : 1 SQM

Price : USD$0.9-USD$55 per SQM

Payment Terms : Western Union, T/T

Supply Ability : 16854200 SQM per month

Delivery Time : 15-25 days

Packaging Details : wooden case

Product name : stainless steel woven wire mesh

Application : Filters

Weave style : Plain weave, twill weave ,dutch weave

Wire diameter : 14#-50#

Mesh : 1-8000 Mesh

Material : 201,202,302,304,304L,316,316L

Technique : Woven

Length : 30m per roll or as required

Width : 1.2m,1m,0.5-2m,can be customized

Usage : chemical industry

Contact Now

Hot Sale Best Price 1 - 8000 Mesh 304 316 316L Stainless Steel Wire Mesh

Stainless Steel Wire Mesh Introductions

Stainless steel wire mesh cloth is made by stainless steel wire and then woven together to form a square opening or oblong opening. Due to its own characteristics of stainless steel, the stainless steel mesh processed has high wear resistance, long service life, accurate mesh, uniform structure, no curl, easy to use, uniform screen thickness, anti static, anti-acid and alkali resistance Corrosion.

Stainless Steel Wire Mesh Advantages

The product has the characteristics of acid and alkali resistance, temperature resistance, wear resistance and other properties, therefore, in recent years, stainless steel net is widely used in many different fields.

Stainless Steel Wire Mesh Specifications

MeshWire DiameterMeshWire DiameterMeshWire Diameter
31.0mm240.19mm-0.5mm900.1mm-0.12mm
40.7mm-1.5mm260.19mm-0.4mm1000.07mm-0.14mm
50.6mm-1.2mm280.19mm-0.35mm1100.08mm-0.09mm
60.5mm-1.0mm300.15mm-0.4mm1200.07mm-0.1mm
70.5mm-0.8mm320.17mm-0.3mm1400.06mm-0.07mm
80.4mm-1.0mm340.23mm1500.06mm-0.07mm
100.3mm-1.0mm350.25mm-0.3mm1600.06mm
120.3mm-0.8mm360.15mm-0.28mm1800.05mm
140.27mm-0.7mm400.12mm-0.27mm2000.05mm-0.06mm
160.25mm-0.7mm500.13mm-0.25mm3000.03mm-0.04mm
180.20mm-0.55mm600.1mm-0.19mm4000.023mm-0.03mm
200.19mm-0.55mm700.1mm-0.15mm5000.025mm
220.21mm-0.5mm800.08mm-0.17mm6350.018mm

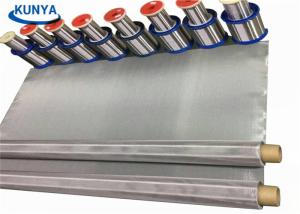

1 8000 Mesh 304 316 316L Fine Mesh Screen Stainless Steel Wire Cloth 1.2m1 8000 Mesh 304 316 316L Fine Mesh Screen Stainless Steel Wire Cloth 1.2m1 8000 Mesh 304 316 316L Fine Mesh Screen Stainless Steel Wire Cloth 1.2m1 8000 Mesh 304 316 316L Fine Mesh Screen Stainless Steel Wire Cloth 1.2m1 8000 Mesh 304 316 316L Fine Mesh Screen Stainless Steel Wire Cloth 1.2m
