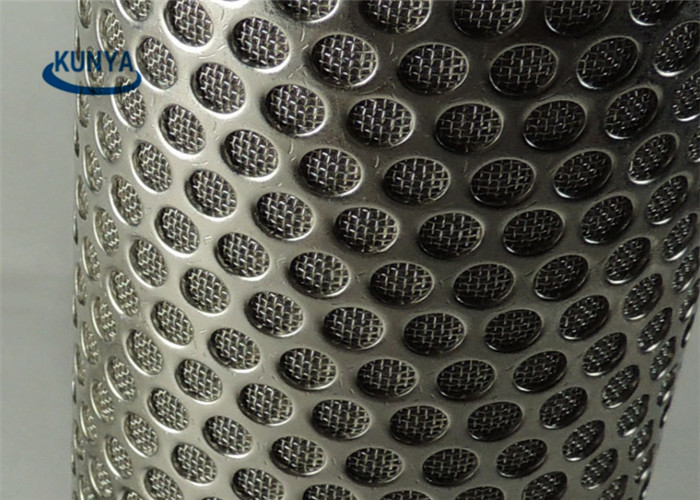

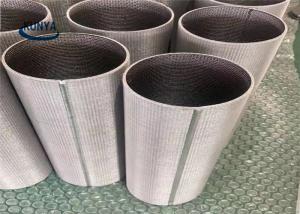

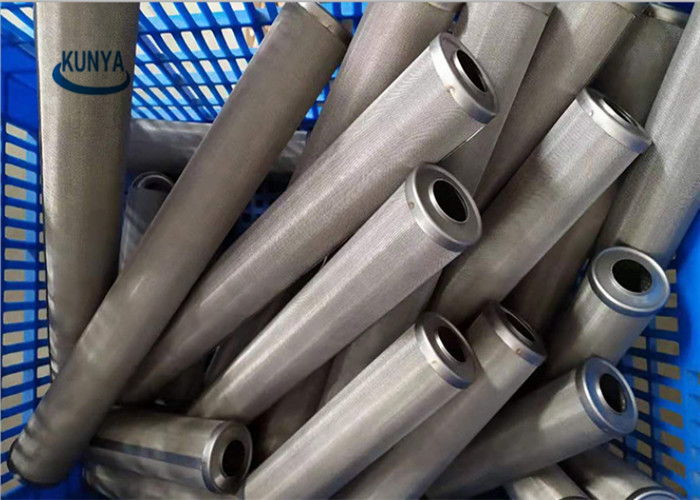

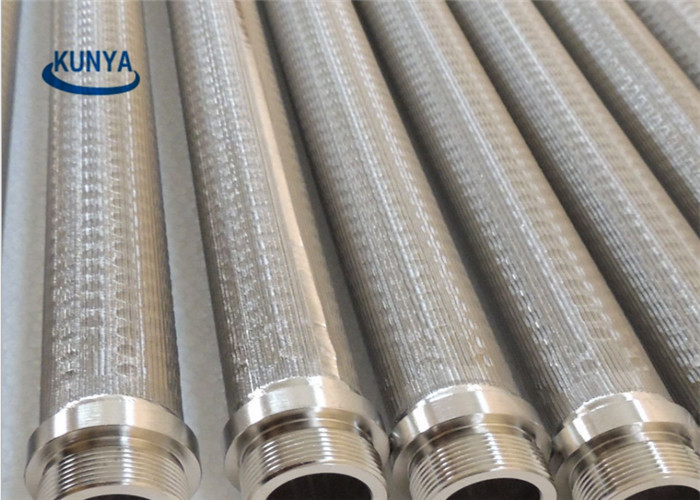

304 Stainless Steel 316 Stainless Steel Mesh Water Purifier Filter Element
Multi-layer metal sintered mesh is a new type of filter material with a certain strength and overall rigidity, which is a new type of filter material with a certain strength and overall rigidity, which is laminated and sintered by a multi-layer metal wire woven mesh.
The hole is easy to deform and unstable, and its comprehensive performance is higher than that of metal powder sintered, ceramic, metal fiber sintered filter felt and other products. Used in petroleum, energy, electric power, electronics and other fields.
2. Water Purifier Filter Element Use: 1. Used as a dispersive cooling material in a warm environment; 2. Used for gas distribution, fluidized bed orifice material; 3. Used as high temperature filter material; 4. Used for high pressure backwash.
Water Purifier Filter Element Features
1) Sintering filter high strength: five layer screen sintering, high mechanical strength and compressive strength;
2) Sintering filter high precision: 2-200 um filtering particle size all can play uniformity of surface filtration performance;
3) Sintering filter heat resistance: but durable from - 200 degrees at most 650 degree continuous filtration;
4) Sintering filterclean sex: because the current good cleaning effect and surface filter structure, simple cleaning.
Main application: 1) Sintering filter used in high temperature environment dispersion cooling materials;
2) Sintering filter used in gas distribution, liquid fluidized bed orifice plate materials;
3) Sintering filter used for high precision, high reliability and high temperature filtration materials;
4) Sintering filter used for high pressure reverse flushing oil filter.
Water Purifier Filter Element Specifications
| Name | Stainless Steel Mesh Filter Cylinder |
| Material | 304/316/316L/Monel/Deplex/Hastelloy |
| Micron Rate | 1-300um |
| Standard Size | φ25*1000 φ30*1000 φ40*1000 φ50*1000 φ60*508 φ70*1000 etc |
| Thickness | 1.7 mm |
| Operating Temperature | -200~600℃ |
| Feature | High strength and rigidity,Uniform and stable precision,Cleanable |
| Standard Length | 5" 10" 20" 30" 40" |
| Gaskets and o-rings | EPDM, Nitrile,PTFE , Silicone, Viton and PFTE coated etc or by process selection . |
| End Fittings and connections | Standard interface, such as 222, 220, 226, Fast interface Flange connection Tie rod connection Threaded connection Customized connection |
